Product

To ContributeWe respond to diversifying needs and contribute to process optimization.

We mainly manufacture pleated filters with filter media processed into folds.
In addition to products with the same performance as filters made by other companies currently in use, we can propose and manufacture filters customized to meet the customer's application and request.
We provide high quality, safe and secure filters that are integrately manufactured in a clean environment and quality checked through 100% performance inspection.

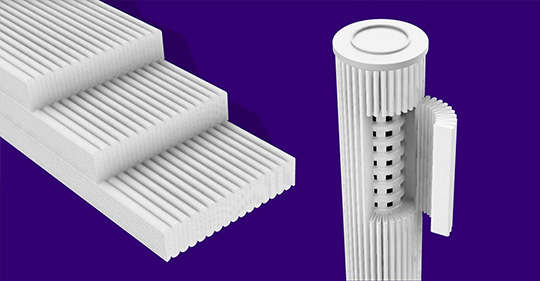

Features of Pleats Filter

Long life

It takes longer for the filter media to become clogged, and a larger amount can be filtered, which has the advantage of reducing the number of filter usage.

Capable of fluid pass at high flow rate

Since the pressure drop is low and a large flow rate can be flowed, the filtration time can e shortened.

* Pressure drop : Decreasing of pressure caused by resistance as fluid passes through a filter

Abundant filter media configuration

Since a wide variety of filter media can be freely combined in one product, it is possible to design and develop according to various applications.

EBy adding pore size gradient*, a long life is realized.

* pore size gradient : The opening of each layer is gradually made finer from the inlet side to the outlet side to prevent clogging in a single layer.

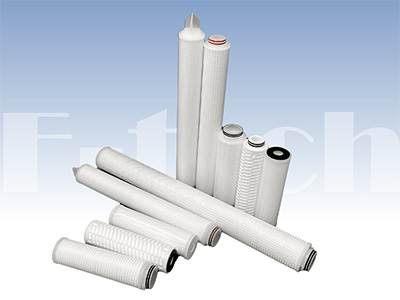

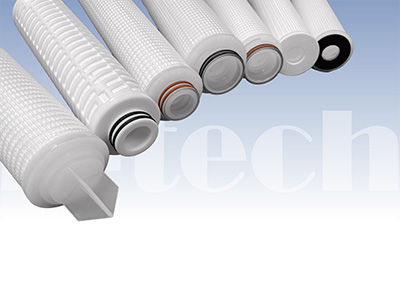

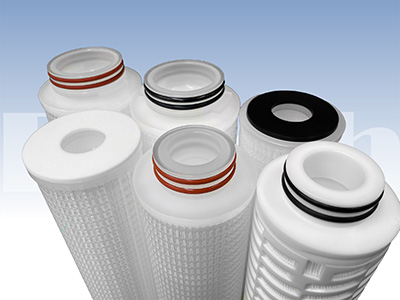

Product 01Cartridge Filter

We produce high-quality pleated filters with excellent cost performance.

In particular, there are many actual products in [Removal of Gel-like substances], [High Viscous Fluids Filtration] and [Classification Filtration*] .

All products are subjected to performance inspection.

Upon request, we can also propose products flushing that drastically reduce fiber shedding from the filter.

Heat-welded polypropylene with excellent solvent resistance and no adhesives are used, thus there is no need to concern about elution.

* Classification Filtration : Efficient separation and recovery of particles larger or smaller than a specific particle size.

Filter media specification

Filter Type	Media Material	Filtration Rating (µm)
Pleats	Polypropylene	0.2 –
	PTFE Membrane	0.1 –
	PES Membrane	0.1 –
	Polymer Mesh	Depends on the number of meshes
	Glass	-
Metal Mesh (Pleats type/Winding type)	Various metals	Depends on the number of meshes

Size

Outer Diameter	length
70 mm/83 mm	5 inch – 30 inch

All products are available in two outer diameter options.

Outer Diameter of 83 mm has a filtration area about 1.5 times compared to that of Outer Diameter of 70 mm, and is excellent in service life and cost performance.

83 mm Outer Diameter can be used with Filter Housing with Outer Diameter of 89.1 mm or more.

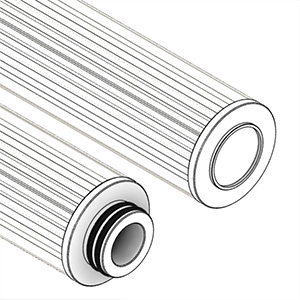

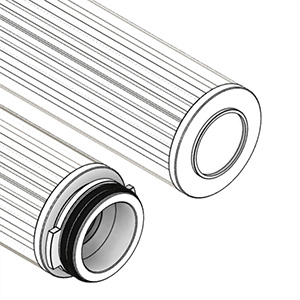

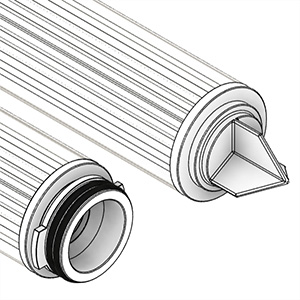

Seal Shape

Scroll horizontally

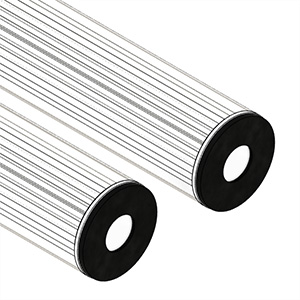

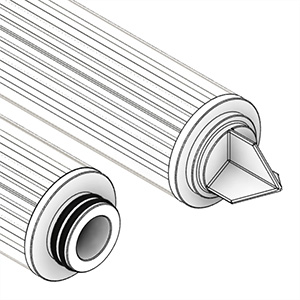

Flat DOE^*1	226 O-ring(With fin)^*2	226 O-ring(No fin)^*2	222 O-ring(With fin)^*2	222 O-ring(No fin)^*2
F type	T type	P type	W type	M type

*1 : DOE (Double Open End/vertical release type)
*2 : Based on the AS568 standard (AS standard/former ARP568 series) for size of O-rings.

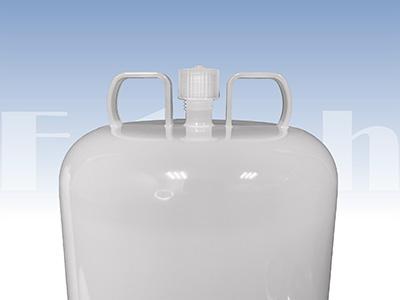

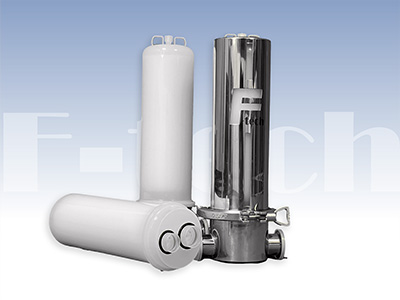

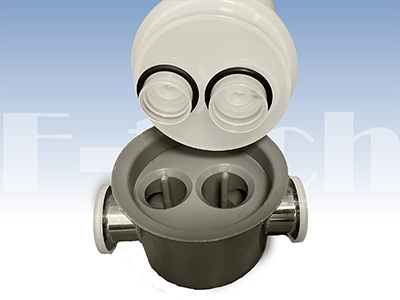

Product 02Flow Navi

This is a product that embodies the voice of "making filtration easier."

All products are subjected to performance and airtightness inspections."

Since there is no leakage when removing the filter, the working environment can be improved.

There is no flow drop due to encapsulation, and processing can be performed at the same flow rate as cartridge filter.

By slitting the housing, the liquid level can be checked.

The capsule case has a handle on the top for easy removal.

By installing a small window for label confirmation, it is possible to check the lot number even during liquid flow.

Flow Navi has been patented. [PAT.7160714]

* A housing exclusively for Flow Navi is available.

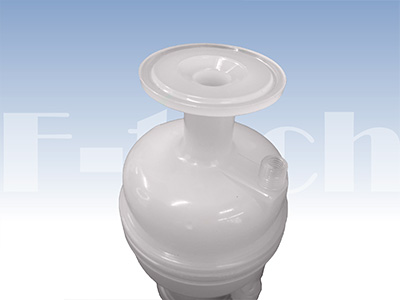

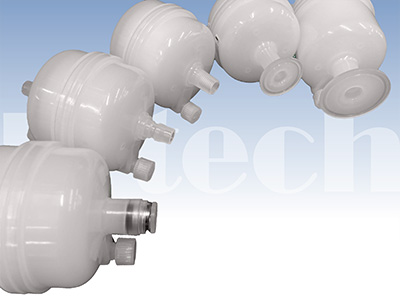

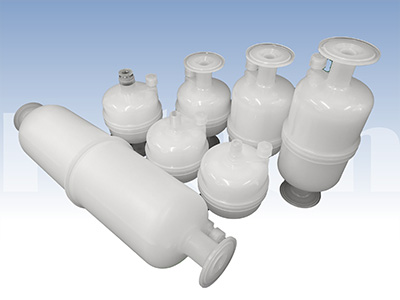

Product 03Capsule Filter

The polypropylene capsule case has a built-in pleated filter, eliminating the need for housing.

All filter series can be encapsulated.

All products are subjected to performance and airtightness inspections.

The size can be selected according to the application (processing amount).

Ideal for low-volume production, lab-scale testing, and do on.

Heat-welded polypropylene with excellent solvent resistance and no adhesives or sealants are used, thus there is no need to concern about elution.

In order to drastically reduce the number of items that can be detached from the filter, all capsule filters are flushed.

Various connection shapes are available.

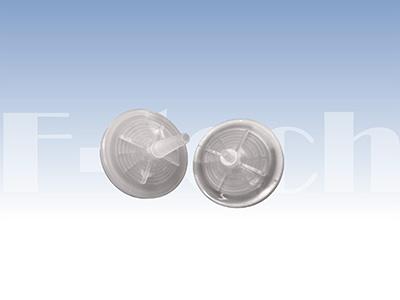

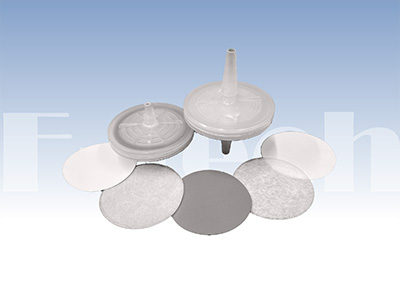

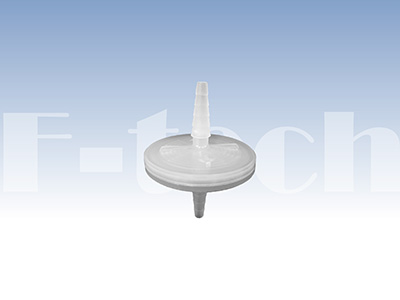

Product 04Disk Filter

The polypropylene capsule case has a built-in filter, eliminating the need for disk holder.

The polypropylene case has a built-in 47 filter medium.

It is ideal for applications such as low-volume production, testing, research, development and inspection.

Heat-welded polypropylene with excellent solvent resistance and no adhesives or sealants are used, thus there is no need to concern about elution.

All filter series can be encapsulated.

All products are subjected to performance and airtightness inspections.

In order to drastically reduce the number of items that can be detached from the filter, all capsule filters are flushed.

Connection Shape

Scroll horizontally

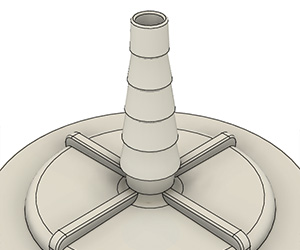

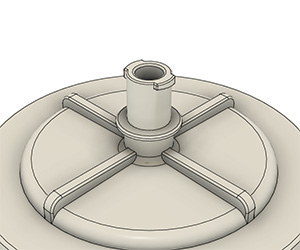

Luer Lock	Hose nozzle

Connects to syringe tip	Connected to 4 – 8 tube

Product 05Oil Mist Separator

F-tech Inc. is a specialized manufacturer in industrial filters.When it comes to Filtration and Separation, please consult to F-tech.

To ContributeWe respond to diversifying needs and contribute to process optimization.

Features of Pleats Filter

Long life

Capable of fluid pass at high flow rate

Abundant filter media configuration

Product 01Cartridge Filter

We produce high-quality pleated filters with excellent cost performance.

In particular, there are many actual products in [Removal of Gel-like substances], [High Viscous Fluids Filtration] and [Classification Filtration*] .

All products are subjected to performance inspection.

Upon request, we can also propose products flushing that drastically reduce fiber shedding from the filter.

Heat-welded polypropylene with excellent solvent resistance and no adhesives are used, thus there is no need to concern about elution.

Filter media specification

Size

All products are available in two outer diameter options.

Outer Diameter of 83 mm has a filtration area about 1.5 times compared to that of Outer Diameter of 70 mm, and is excellent in service life and cost performance.

83 mm Outer Diameter can be used with Filter Housing with Outer Diameter of 89.1 mm or more.

Seal Shape

Product 02Flow Navi

This is a product that embodies the voice of "making filtration easier."

All products are subjected to performance and airtightness inspections."

Since there is no leakage when removing the filter, the working environment can be improved.

There is no flow drop due to encapsulation, and processing can be performed at the same flow rate as cartridge filter.

By slitting the housing, the liquid level can be checked.

The capsule case has a handle on the top for easy removal.

By installing a small window for label confirmation, it is possible to check the lot number even during liquid flow.

Flow Navi has been patented. [PAT.7160714]

Product 03Capsule Filter

The polypropylene capsule case has a built-in pleated filter, eliminating the need for housing.

All filter series can be encapsulated.

All products are subjected to performance and airtightness inspections.

The size can be selected according to the application (processing amount).

Ideal for low-volume production, lab-scale testing, and do on.

Heat-welded polypropylene with excellent solvent resistance and no adhesives or sealants are used, thus there is no need to concern about elution.

In order to drastically reduce the number of items that can be detached from the filter, all capsule filters are flushed.

Various connection shapes are available.

Product 04Disk Filter

The polypropylene capsule case has a built-in filter, eliminating the need for disk holder.

The polypropylene case has a built-in 47 filter medium.

It is ideal for applications such as low-volume production, testing, research, development and inspection.

Heat-welded polypropylene with excellent solvent resistance and no adhesives or sealants are used, thus there is no need to concern about elution.

All filter series can be encapsulated.

All products are subjected to performance and airtightness inspections.

In order to drastically reduce the number of items that can be detached from the filter, all capsule filters are flushed.

Connection Shape

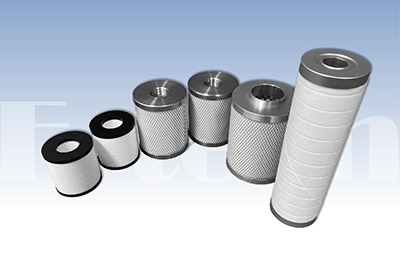

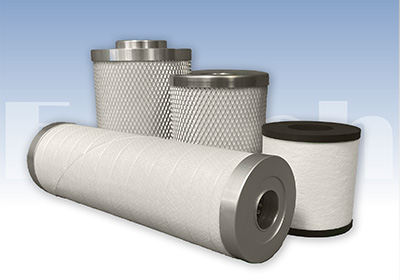

Product 05Oil Mist Separator
